Name: Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks
Brand: DONGGUAN MAUFUNG MACHINERY CO.,LTD
Price: 13.00 USD
Availability: InStock

Ana sayfa Ürünler Not defteri bağlama makinesi

Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	MAUFUNG

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	$13,000-14,000

İletişim

Detaylı ürün tanımı

Güç:	5.2kw	Gerilim:	380V/220V
Makine boyutları:	1780×1620×1400mm	Makine ağırlığı:	550KG (KB), 700KG (GW)
çalışma hızı:	1-3PCS/dakika	karton kalınlığı:	1-4mm
Sert Kasa Omurga Genişliği:	9mm (Min)	Açık Kitap Kutusu Boyutu:	780x430mm (Maks), 140x140mm (Min)
Kağıt kalınlığı:	80-200g	Ambalaj boyutu:	210013001830mm
Ciltleme Hızı:	2-3 adet/dakikada	Maksimum kağıt boyutu:	780*430mm
Min kağıt boyutu:	125*125mm	Yapıştırma hızı:	20-40 adet (MF-GM500)
Maksimum kaplama genişliği:	500 mm (MF-GM500)
Vurgulamak:	5.2KW Power Book Case Making Machine , 1-4mm Paperboard Thickness Hard Cover Case Maker , 2-3pcs/min Binding Speed Notebook Binding Machine

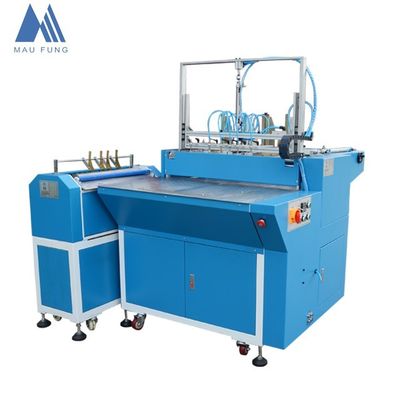

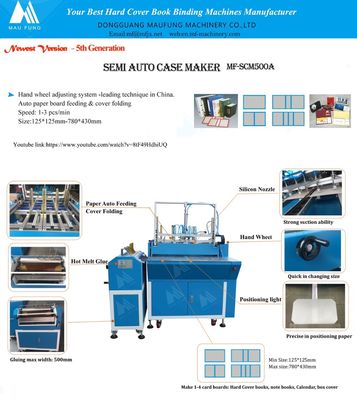

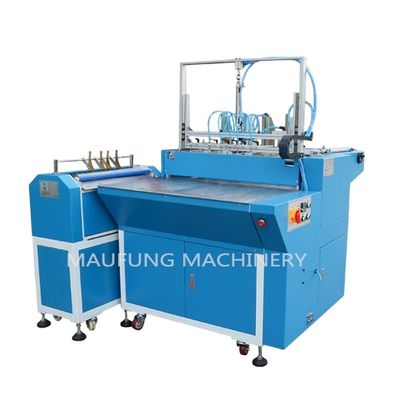

MF-SCM500A Semi Auto Case Maker

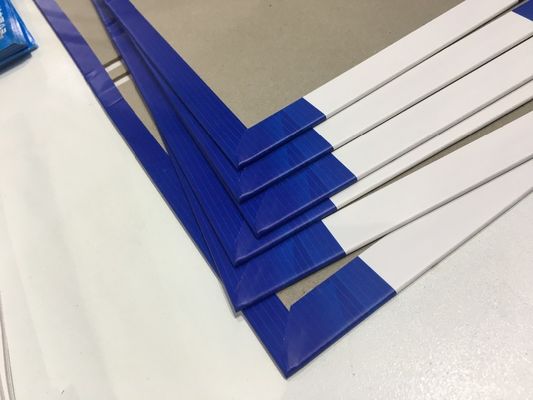

This machine is primarily used for covering and folding various notebooks, photo books (photo albums), folders, certificates, and hardcover books. The process is completed efficiently on both sides simultaneously by a single operator, making it ideal for hard cover post-press binding applications.

Specifications

Model	MF-SCM500A
Power Supply	380V/220V, 50HZ
Mainframe Power	5.2kw
Work Speed	1-3PCS/minute
Paperboard Thickness	1-4mm
Hard Case Spine Width (Min)	9mm
Open Book Case Size (Max)	780x430mm
Open Book Case Size (Min)	140x140mm
Paper Thickness	80-200g
Machine Dimensions (L×W×H)	1780×1620×1400mm
Packaging Size (LxWxH)	210013001830mm
Machine Weight	N.W 550KG; G.W.700KG

Main Features

Automatic paper feeding system with pneumatic auto foot switch
PLC operating system for precise control
Compatible with hot glue (animal glue/Jelly glue)
Quick product changeover with fast adjustment speed
Automatic cardboard thickness adjustment
Size adjustment via rotating handle wheel
Light tube inside working table for accurate positioning

Optional Hot Melt Gluing Machines

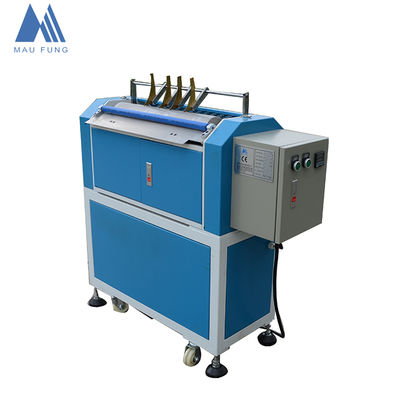

MF-GM500 Hot Melt Gluing Machine
Max Coating Width: 500mm
Normal Gluing Thickness: 80-200g
Gluing Speed: 20-40pcs

MF-720 Hot Melt Gluing Machine
Max Coating Width: 720mm
Normal Gluing Thickness: 0.15-0.35mm
Gluing Speed: 5-25m/minute

Related Equipment

MF-FAC390A Auto Book Casing In & Joint Forming Line

MF-SEM450 Semi-Automatic Elastic Band Inserting Machine

MF-FAC390 Fully Auto Case In Machine

MF-PCM380EV Pressing & Creasing Machine (Enhanced version)

MF-SKJ380AS Hard Cover Book Case In Machine

Certifications

We continuously upgrade product quality and after-sales service while focusing on self-development. Adhering to "People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy" and "Rooting in Quality, Developing via Brand" strategy, we have obtained CE certification, multiple patents, and recognition as a National "High Tech Enterprise".

Frequently Asked Questions

1. Is your company a factory or trading company?

Our company is a factory.

2. What about the samples?

You can visit our factory if you'd like.

3. How to install the machine?

After-sales Service Provided:
- Online support
- Free spare parts
- Field installation, commissioning and training
- Field maintenance and repair service
- Video technical support

4. What if the machine can't work?

We are available 24 hours online.

5. How long is the warranty period?

One year.

6. What certificates do your machines have?

Our machines all have CE certificates and Certificates of origin.
