Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Büyük resim :  Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: MAUFUNG
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: $8,000-9,000

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Açıklama
Güç: 1,5 kW Gerilim: 220v/50Hz
Boyut: 960*870*1390mm Ağırlık: 220kg
Kesme kalınlığı: 100 mm Çalışma hızı: 23 kez/dakika
Min kağıt boyutu: 105*50mm Maksimum kağıt boyutu: 490*450mm
Çalışma Masası boyutu: 860*380mm Hava basıncı: 6-8Bar
Yuvarlak köşe kalıbı: 1/8'',3/16'',1/4'',5/16'',3/8'',7/16'',1/2'' Otomatik Sınıflandırma: Otomatik
Makine boyutları: 960*870*1390mm Net ağırlığı: 220kg
Model Hayır: MF-DCM470
Vurgulamak:

100mm Cutting Thickness Round Corner Cutting Machine

,

23 times/min Working Speed Book Cutting Machine

,

490*450mm Max Paper Size Notebook Cutting Machine

Pneumatic Double Head Angle Cutting Machine Book Round Corner Cutting Machine Notebook Cutting Machine
Product Specifications
Model No MF-DCM470
Power Supply 220V /50HZ
Max Paper size 490*450mm
Min Paper size 105*50mm
Max cutting thickness 100mm
Round corner mold 1/8'',3/16'',1/4'',5/16'',3/8'',7/16'', 1/2'',9/16'',5/8'',3/4'',7/8'', 1'
Working Table size 860*380mm
Air pressure 6-8bar
Machine Dimensions (L*W*H) 960*870*1390mm
Working Speed 23 times/min
Weight 220kg
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 0 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 1

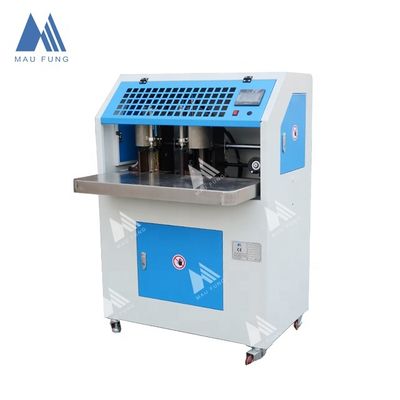

Pneumatic double head with max cutting 100mm thickness.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 2 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 3

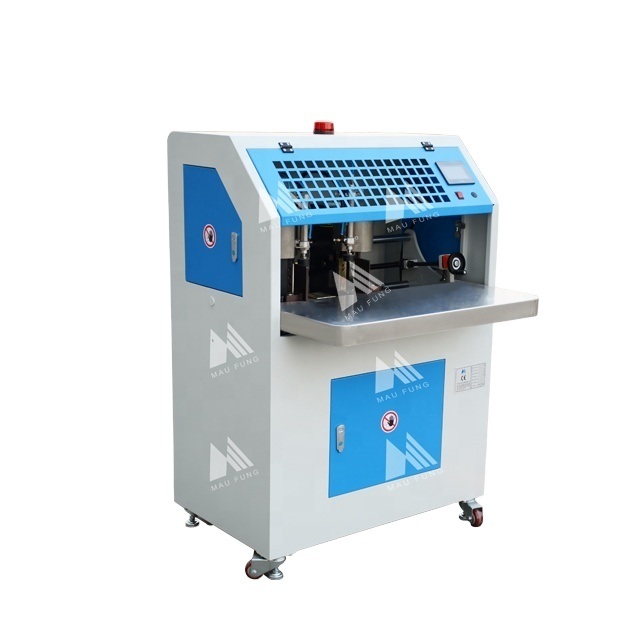

Touch screen for convenient operation.
Applications
MF-DCM470 Hydraulic Double-head Angle Cutting Machine applies to books, playing cards, invitations, trademarks, business cards and other printing and cutting round, triangle shape. This machine uses hydraulic system. It can cut two sides of angles one time with simple operation and high efficiency.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 4 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 5 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 6
Certifications
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 7
Company Information
We Dongguan Maufung Machinery Co., Ltd is a leading manufacturer in the hard cover books binding machines and Rigid Box packaging machines. Our company mainly produces Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Hard Cover Book Pressing & Creasing Machine, Book Block Rounding Machine, fully automatic punching machine, hydraulic impacting spine machine, wire O binding machines, rigid box forming machines, etc. We possess our independent well-known brands MAUFUNG.

We take the quality and after-sale service as the core of our business which makes our brand good fame in the world. And we have a very professional R&D team with over 20 years experience in this line. We care about the market trends, focus on the machine quality and performance, and attach great importance to customers demand. Products sell well in China and have been exported to more than 100 countries.
