Ürün ayrıntıları:
|
| Modeli: | MF-SDM360 | Hız: | 1000 hacim/saat |
|---|---|---|---|
| Önemli Noktalar: | kalıp olmadan | Bağlama genişliği: | 360 mm |
| Gerilim: | 380/220V, 3ph | Garanti: | 1 Yıl |
| Malzemeler: | Çift döngü metal tel | Kullanım: | Tel defterler, takvim yapma makinesi |
| Vurgulamak: | CE twin coil wire binding machine,360mm spiral book binder,25pcs/min wire binding equipment |
||

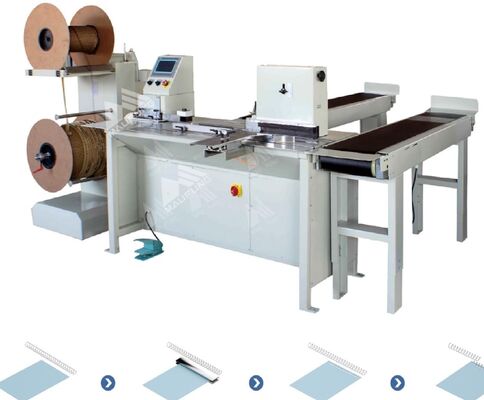

Twin Coil notebook Calendar Binding Machine MF-SDM360is used for binding double wire books, notebooks, wall calendars, etc. It can bind
1/4"-1¼" without changing binding molds. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably. Controlled by PLC. Easy to operate and adjust. There are no tools to change as the closing press is adjustable for all the diameters. Especially suitable for binding the notebooks which the cover is bigger than inner sheet.
| Model | MF-SDM520 |
| Power Supply | 380V/220V, 50HZ |
| Mainframe Power | 2KW |
| Binds sheet Width(max) | 507mm |
| Binds Double Coil Standard | P3:1 3/16″-9/16″ P2:1 5/8″-1″ |
| Work Speed | 25PCS/minute |
| Machine Dimensions(L×W×H) | 1030×770×1200mm |
| Worktable Dimension | 600mm×300mm |
| Air Pressure | 6-8pa |
| Machine Weight | 280kg |
